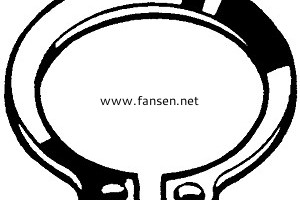

DIN471 Circlets For Shafts軸用彈性擋圈
Dimension mm | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Shaft Diameter d1 mm | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
GrooveDiameter d2 mm | 2.8 | 3.8 | 4.8 | 5.7 | 6.7 | 7.6 | 8.8 | 9.6 | 10.5 | 11.5 |
Thickness s mm | 0.4 | 0.4 | 0.6 | 0.7 | 0.8 | 0.8 | 1 | 1 | 1 | 1 |
Dimension mm | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 |
Shaft Diameter d1 mm | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 |
GrooveDiameter d2 mm | 12.4 | 13.4 | 14.3 | 15.2 | 16.2 | 17 | 18 | 19 | 20 | 21 |
Thickness s mm | 1 | 1 | 1 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Dimension mm | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 |
Shaft Diameter d1 mm | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 |
GrooveDiameter d2 mm | 22 | 22.9 | 23.9 | 24.9 | 25.6 | 26.6 | 27.6 | 28.6 | 29.3 | 30.3 |
Thickness s mm | 1.20 | 1.20 | 1.20 | 1.2 | 1.2 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Dimension mm | 33 | 34 | 35 | 36 | 37 | 38 | 40 | 42 | 45 | 47 |
Shaft Diameter d1 mm | 33 | 34 | 35 | 36 | 37 | 38 | 40 | 42 | 45 | 47 |
GrooveDiameter d2 mm | 31.3 | 32.3 | 33 | 34 | 35 | 36 | 37.5 | 39.5 | 42.5 | 44.5 |
Thickness s mm | 1.50 | 1.50 | 1.50 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 |
Dimension mm | 48 | 49 | 50 | 51 | 52 | 53 | 54 | 55 | 56 | 57 |
