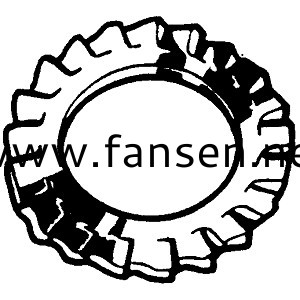

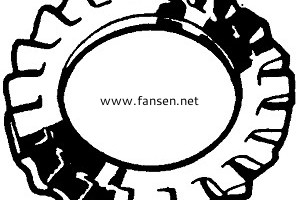

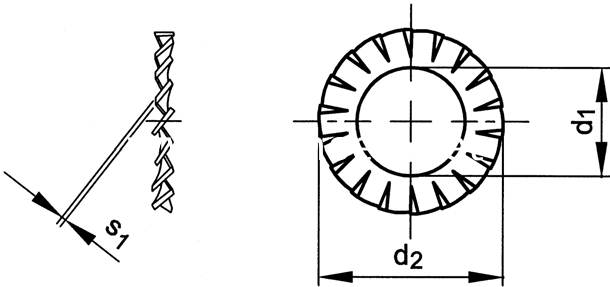

DIN6798A Serrated Lock Washers External Gear Type A 外鋸齒鎖緊墊圈
Thread | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M7 |
Nominal | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 |
d1 | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 |
d2 | 3.6 | 4.5 | 5.5 | 6.0 | 7.0 | 8.0 | 10.0 | 11.0 | 12.5 |
S | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 |
number of teeth | 9 | 9 | 9 | 9 | 10 | 11 | 11 | 12 | 14 |
Thread | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
Nominal | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
d1 | 8.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
d2 | 15 | 18 | 20.5 | 24 | 26 | 30 | 33 | 36 | 38 |
S | 0.8 | 0.9 | 1 | 1 | 1.2 | 1.4 | 1.4 | 1.5 | 1.5 |
number of teeth | 14 | 16 | 16 | 18 | 18 | 18 | 20 | 20 | 20 |
